Bespoke sizes
Span, support width and vibration limits agreed with the structural engineer early.
Structural glass floors
Structural glass floors span between bearings with minimal support, so deflection, vibration and post-breakage behaviour are checked as part of the structural model rather than treated as secondary finishes. Panels are deep laminates with interlayers chosen for residual strength if one ply breaks.

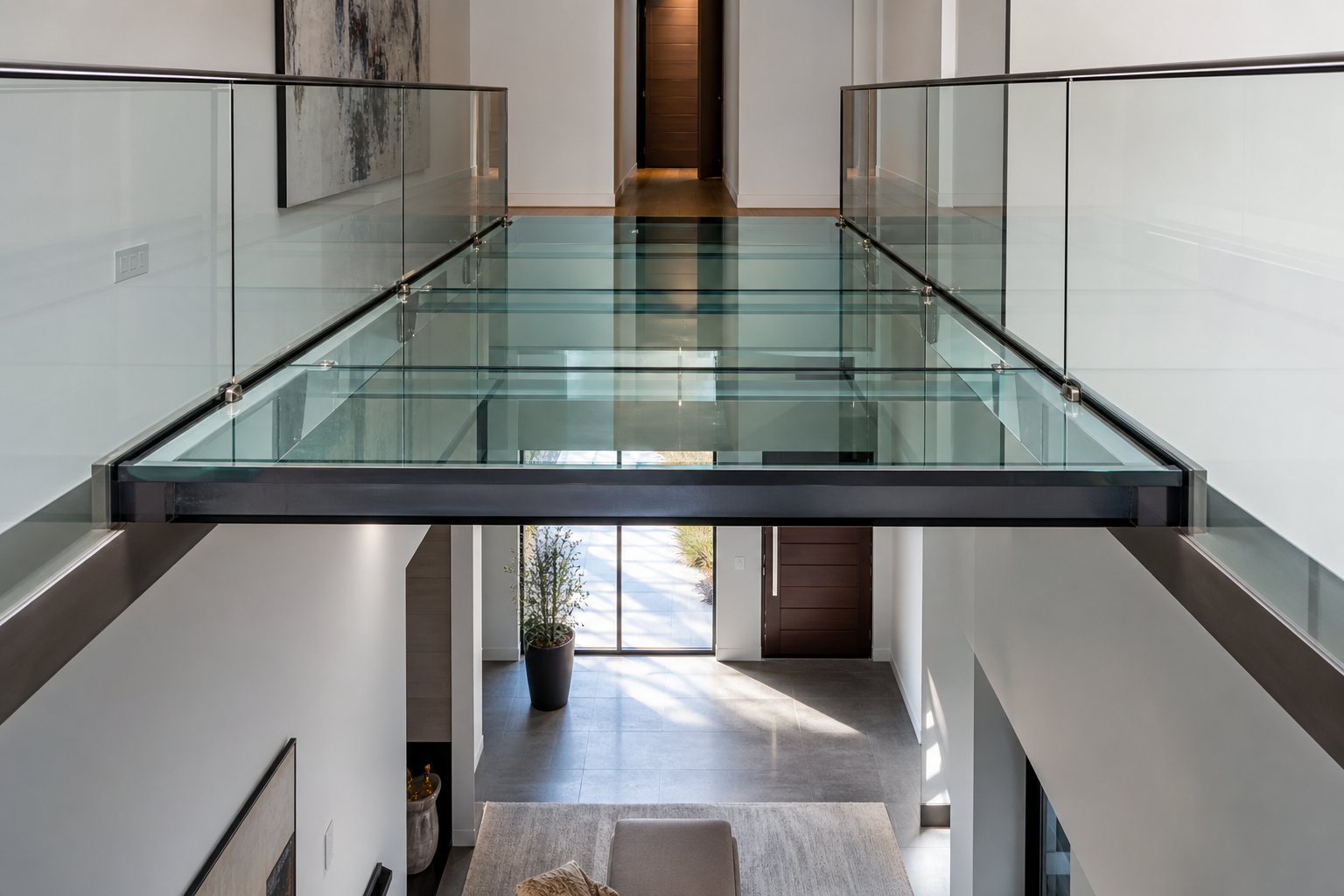

They are used in feature bridges, atria and gallery links where the architect wants a clear view between levels. Acoustic performance comes from laminate mass and damped interlayers; thermal separation is usually handled by a separate insulated zone rather than by compromising the walking surface build-up.
Standard Glass Specification
Outer: Deep laminated toughened outer build-up per calculation; low-iron plies optional.
Cavity: Not used within the structural walking panel; acoustic interlayers inside the laminate instead.
Inner: Inner plies of the same structural laminate; edges polished and arrised to specification.

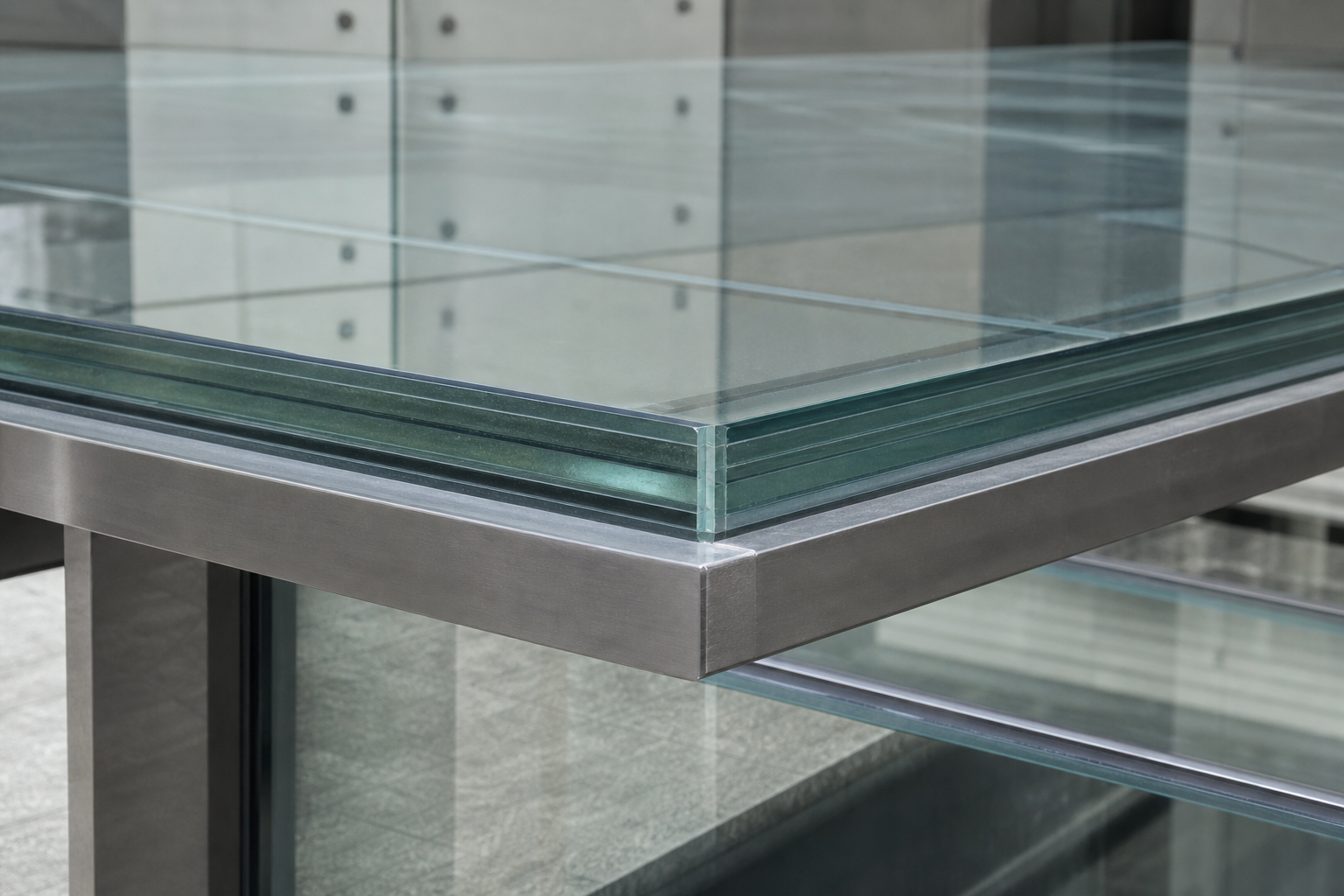

Bearing: Elastomeric bearing pads or setting blocks coordinated with steel shoe geometry.
Finishes: Anti-slip surface or walkable resin coat applied where the brief demands a rated finish.
Features
Quick turnaround
Fabrication drawings issued after bearing tolerances are surveyed.
Various glazing options
Interlayer choice (PVB, ionoplast) driven by post-breakage and creep requirements.
Aluminium frame
Low-profile stainless shoes or fork supports with thermal isolation where needed.
Installation
Lift and temporary propping plans for long-span panels.
Safe & Secure
Inspection regime for edge seals, slip performance and point loads documented.
