Circular rooflight

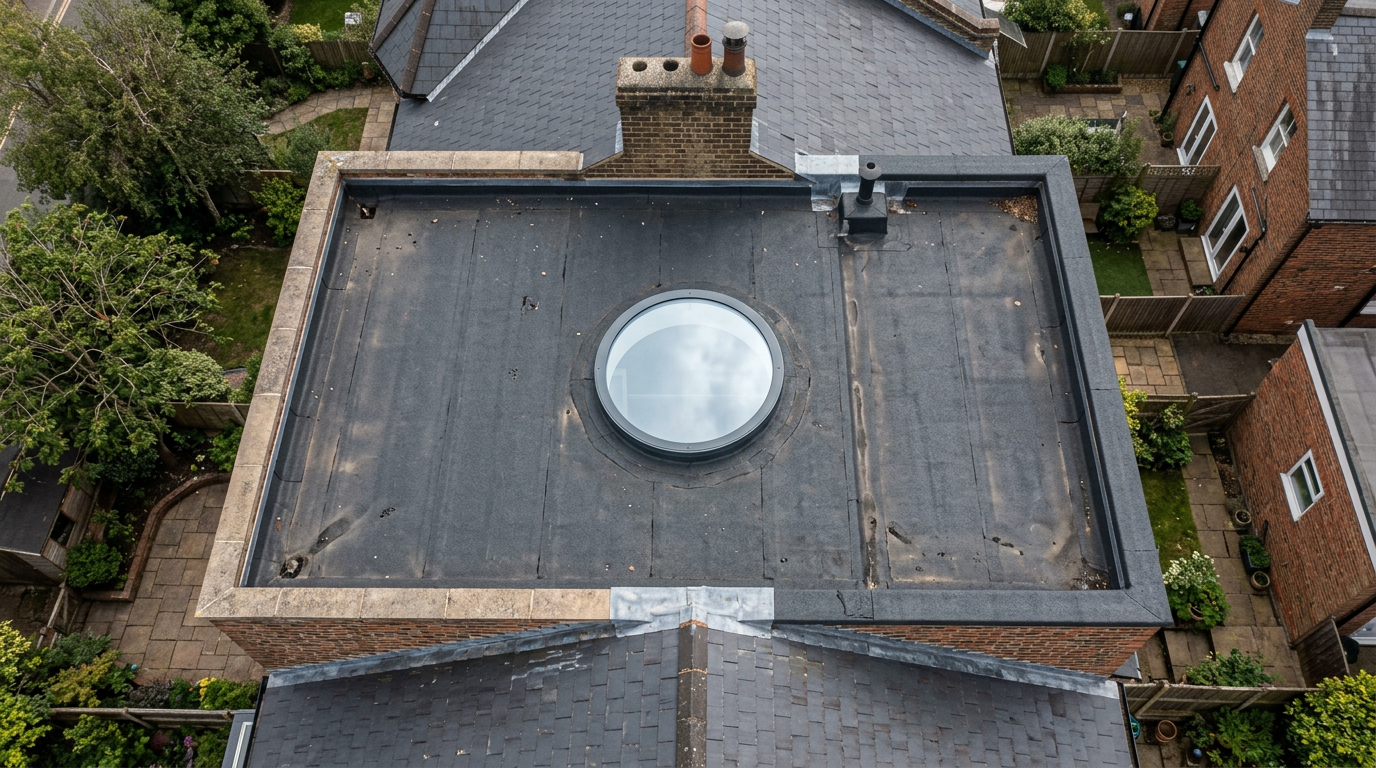

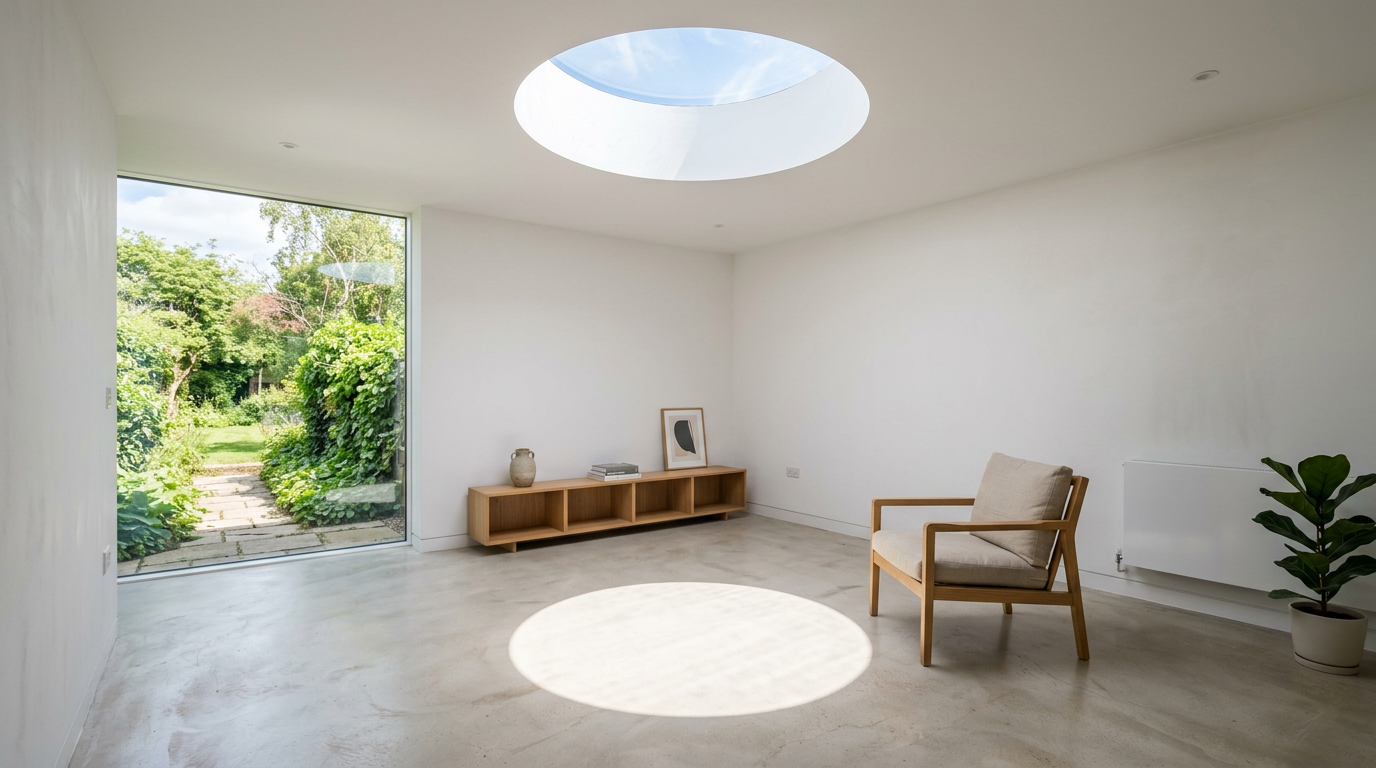

Circular rooflights suit landings, dining tables and stair cores where the architect wants a single sculptural roof puncture rather than a long slot. The insulated glass unit is typically fixed; the technical effort goes into the kerb ring, insulation continuity and internal lining radius so the ceiling reads cleanly.

Low-iron outer glass is often specified to avoid green cast on pale finishes below. Because the perimeter is curved, gasket pressure and cap fixings are checked on a radial setting-out drawing so the unit does not pinch at 12 o’clock while remaining loose at the spring points during thermal movement.
